Haynes

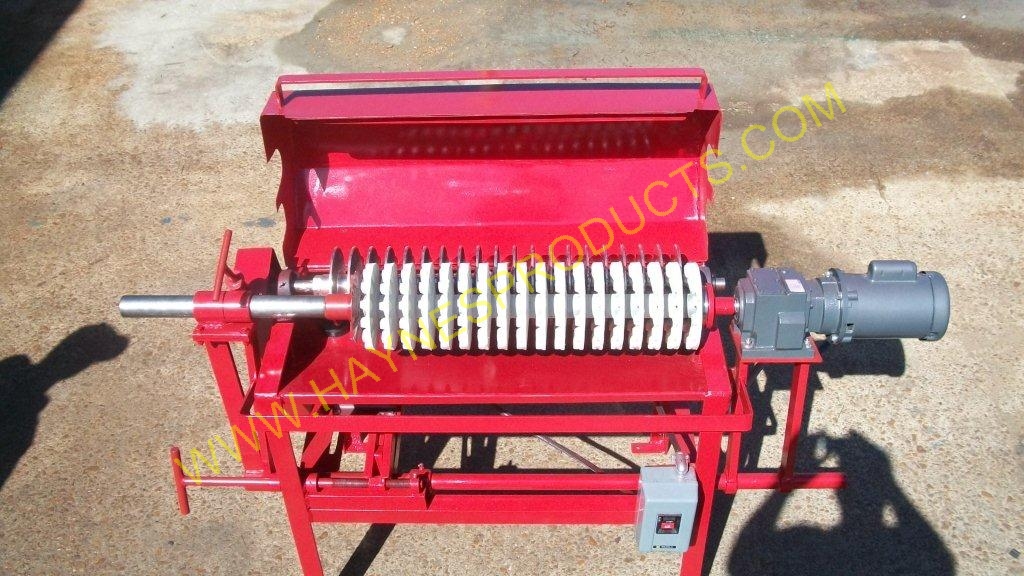

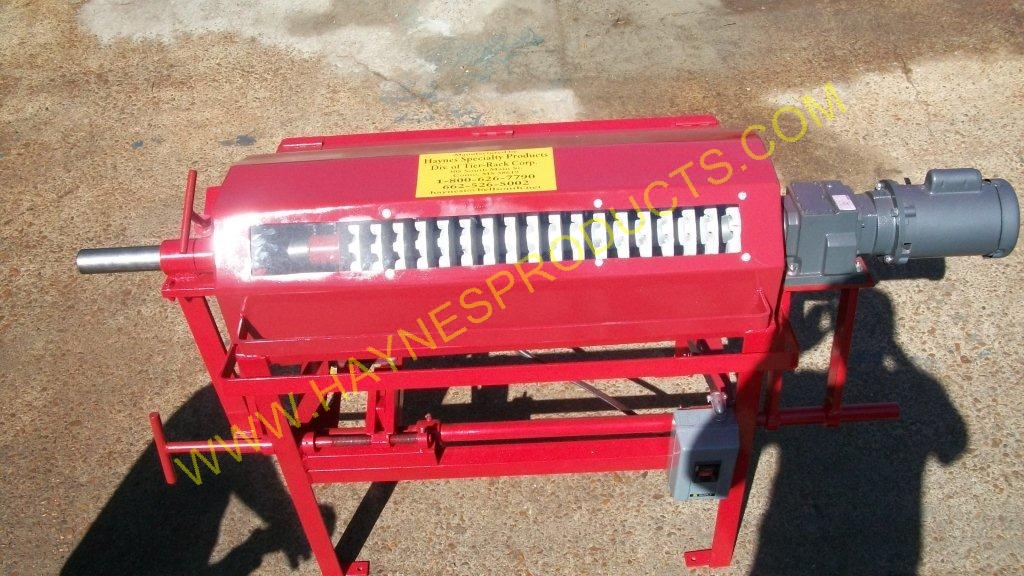

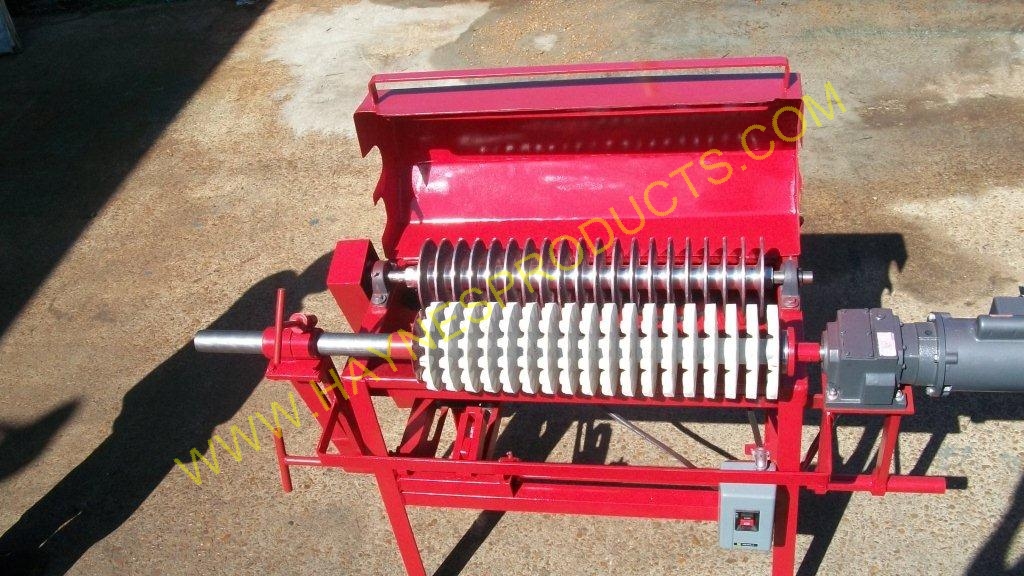

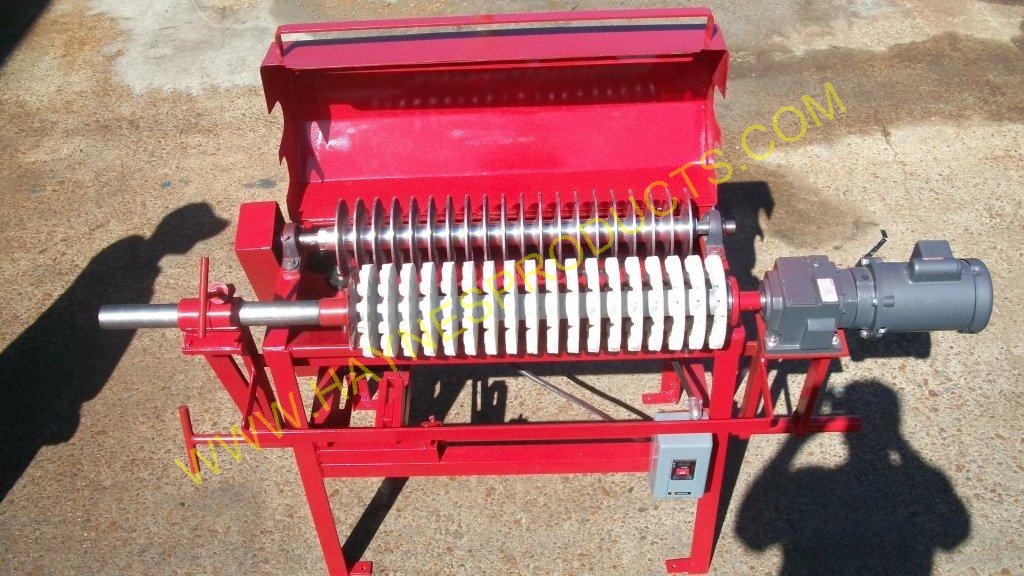

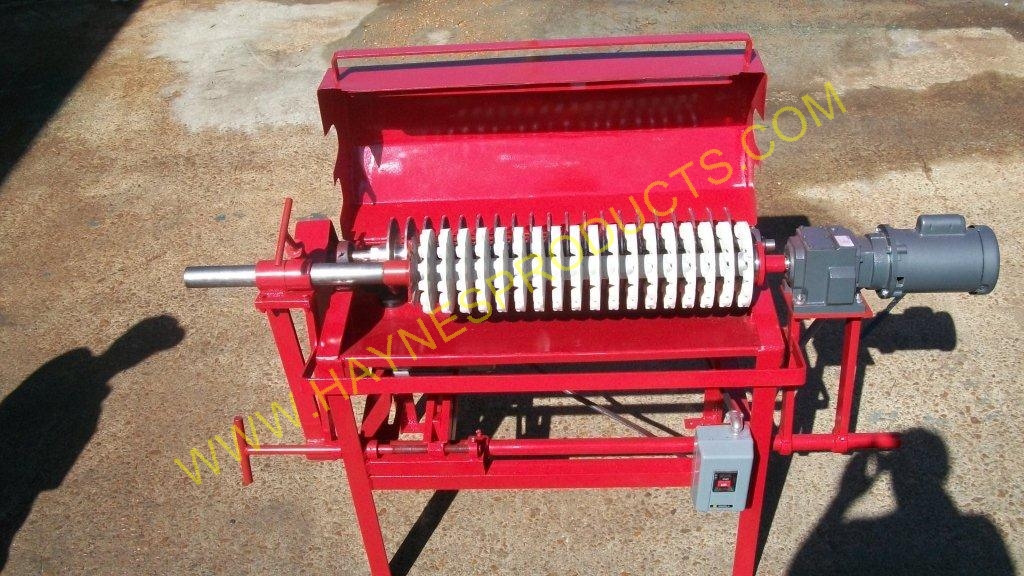

The Haynes IHC DOFFER GRINDER is designed to grind doffer sets of 18 doffers or
doffer sets of 20 doffers.

Part # DG/IHC
Specifications:

Size                        3' W x 7' L x 4' H, angle iron frame
Color                       Red, powder coated
Electrical req.           220V/250V single phase
Electrical connector  L530P
Weight                     480 lbs.
Capacity                  grinds IHC columns
Controls                   on/off control Square D
Motor                      1-½ hp 1275 RPM
Motor                      ¼ hp 1275 RPM
Gear reducer            ratio 24.5.1, torque 1241 in-lb

IHC Doffer GrinderIHC Doffer GrinderIHC Doffer Grinder



IHC Doffer GrinderIHC Doffer Grinder
