Haynes



The Haynes Combination Doffer Grinder is designed to grind both the IHC Doffer sets of 18 doffers and the JD sets of 20 doffers.

Part # DG/IHC/JD

Specifications:

Size                          3' W x 7' L x 4' H, angle iron frame
Color                       Gray, powder coated
Electrical req.           220V/250V single phase
Electrical connector  L530P
Weight                     480 lbs.
Capacity                   grinds IHC or JD doffer columns
Controls                   on/off control Square D
Motor                      1-½ hp 1275 RPM
Motor                      ¼ hp 1275 RPM
Gear reducer            ratio 24.5.1, torque 1241 in-lb

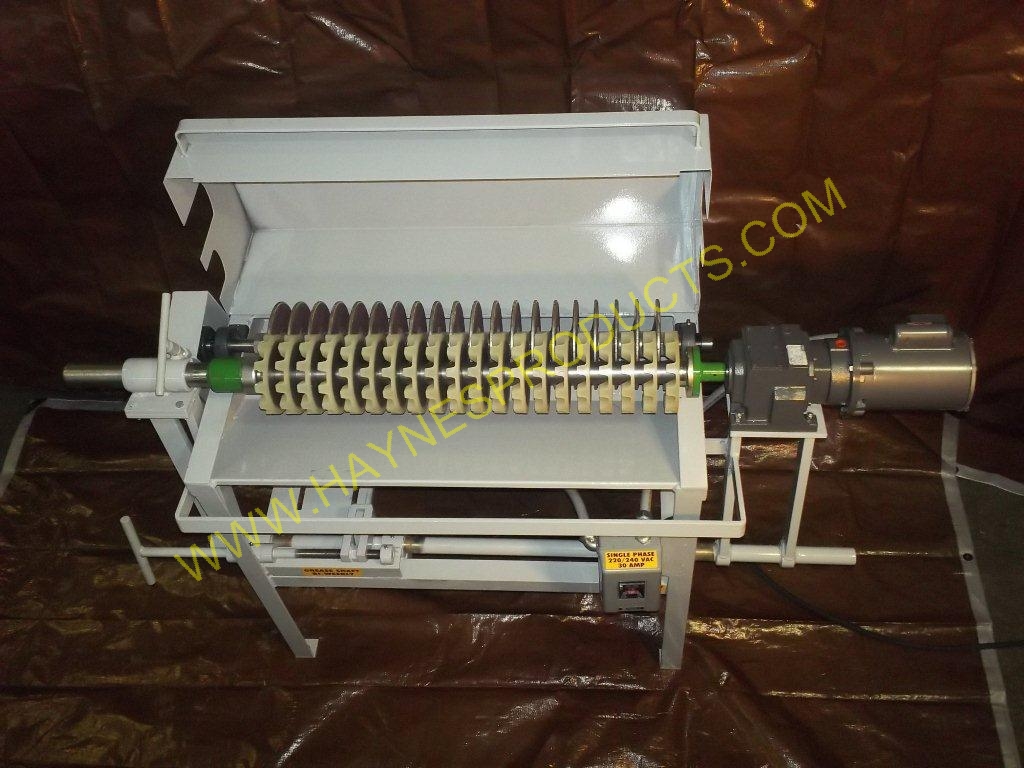

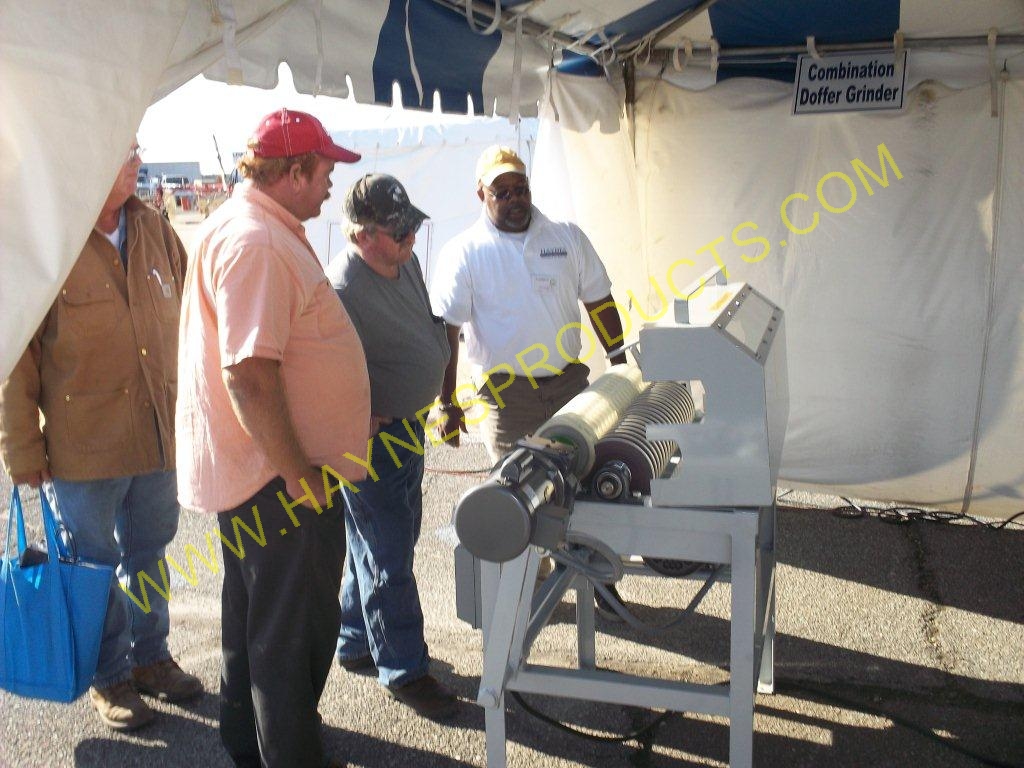

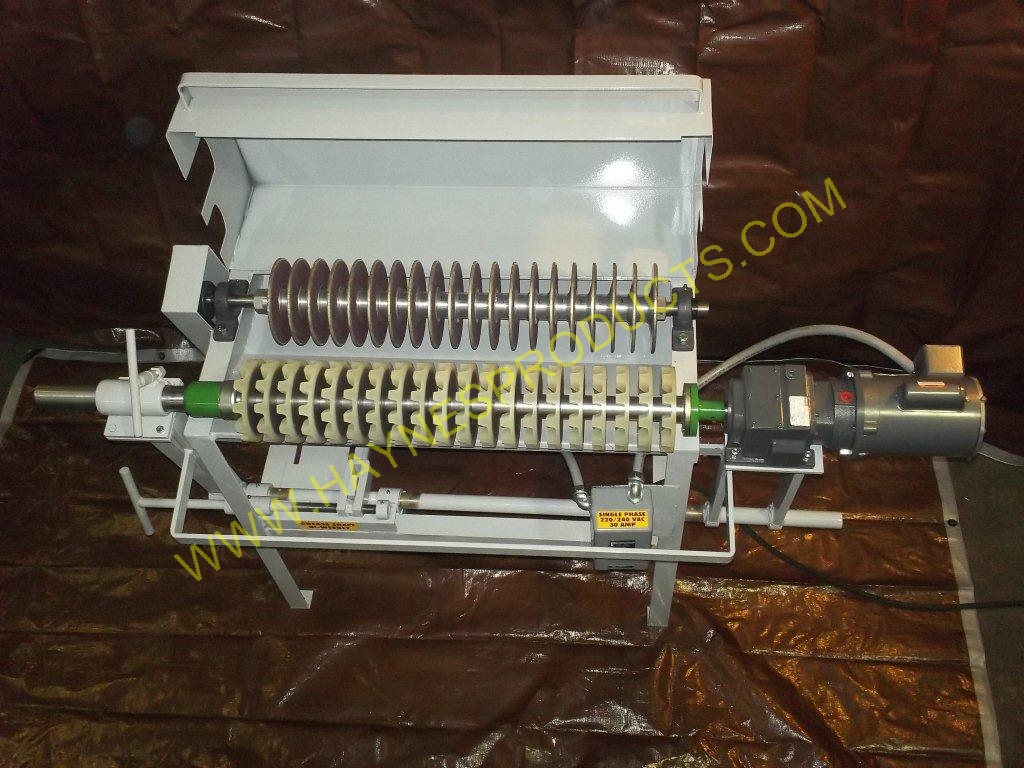

Comb_Doffer_CloseComb_Doffer_OpenComb_Doffer_OpenBCombo Doffer Grinder

{mp4-flv alt="" width="410" height="330"}Combination_Doffer_Grinder{/mp4-flv}
